Power range

Three-input single-output 10kVA-30kVA

Application field

Postal communication, finance and securities, government agencies, energy and chemical industry, transportation,industry and commerce tax, medical and health, national efense forces and other fields.

Performance characteristics

Intelligent digital control system

The inverter and PFC of the UPS adopt an advanced 32-bit high-speed digital signal processor (DSP) chip as the core control system, enabling faster data processing and signal control, which greatly improves the overall performance indicators and reliability of the unit.

Green power energy-saving design

Using the latest lGBT rectifier technology to achieve ultra low input current harmonics, eliminating pollution to the power grid, while reducing the cost of power factor compensation and harmonic governance, and minimizing system losses.The input power factor is close to 1,improving power utilization, reducing the front-end configuration cost of the UPS,and lowering the customer's investment cost.

Friendly human-machine interface

Adopting a large touch-screen design and rack-mounted installation, the operating status, load status, mains status,battery power supply status, etc. of the Ups are clearly displayed on the panel, allowing users to keep track of the UPS's power information and changes in the application environment at any time.

Flexible networking and rich communication

Intelligent monitoring between the computer and the uninterruptible power supply can be achieved through dry contact communication.

Online monitoring can be realized via SNMP, enabling users to have a clear understanding of the equipment so perating status from a distance.

Wide voltage and frequency input

Wide voltage and frequency input ranges are suitable forcomplex power grid environments.

Compatible with generator input

with a wide input voltage and frequency range, it better solves the generator configuration problem and provides clean,safe and stable power for the load.

Panel standard EPO and cold start functions

In case of an emergency, the Ups can be quickly shut down.

When the mains power is abnormal, the UpS can be starteddirectly with the battery to meet emergency needs.

When there is no battery, the UPS can be started directly withthe mains power and can be used as a high-precisionregulated power supply.

ECO economic operation mode

Equipped with an ECO economic operation mode, it can be more energy-efficient when the power grid is in good condition, reducing users' usage costs.

N+X parallel redundancy function

Supports multi-unit parallel networking and N+X hot swapping mode, improving power supply reliability.

No additional parallel cards are reguired for parallel connection; direct parallel connection can be achieved through parallel data cables.

Powerful battery adjustment capability

The number of batteries can be adjusted from 30 to 44,avoiding system operation being affected by battery failures.Faulty batteries can be quickly removed, reducing maintenance time.

For renovation projects, the battery configuration is more flexible, optimizing the investment cost.

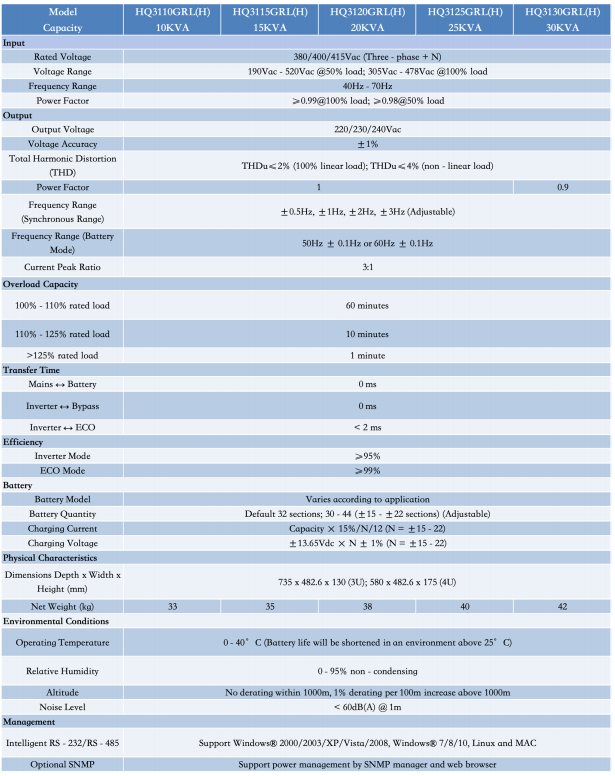

Performance Metrics

*When in the frequency conversion mode, the output power is derated to 80%; when the output voltage is set to 200Vac or 208Vac, the output power will be derated to 80%.*The actual product shall prevail, Specifications are subject to change without prior notice
