Power range

Single-input single-output 1kVA - 10kVA

Application field

Home PCs, computer rooms, data processingcenters, communication, finance, securities,transportation, medical care, petrochemicaland other fields.

Performance characteristics

Super-strong. adaptability to the power grid environment

With an ultra-wide input voltage range, it can supply power normally even in remote areas with extremely harsh power environments,reducing the number of battery discharges and extending the battery life.

Friendly human-machine interface

For 1-3k VA models, the display panel can be optionally LCD or LED.

For 6k VA and above models, an LCD display panel is standard，which can clearly display the operating status, load status.battery status, etc. of the UPS on the panel for easy direct reading and operation by users.

Adopting the latest DSP control technology

The advanced DSP digital control technology effectivelyi mproves product performance and system reliability.

Automatic input power factor correction function

Using digitally controlled active power factor correctiontechnology, the input power factor can reach over 0.99, to copewith the pollution of the power grid environment, reduce thefront-end configuration cost of the UPS, and lower thecustomer'sinvestment cost.

50/60Hz frequency self-adaptivefunction

The frequency automatically tracks to adapt to 50Hz/60Hz powersystems, meeting the requirements of global power systems.

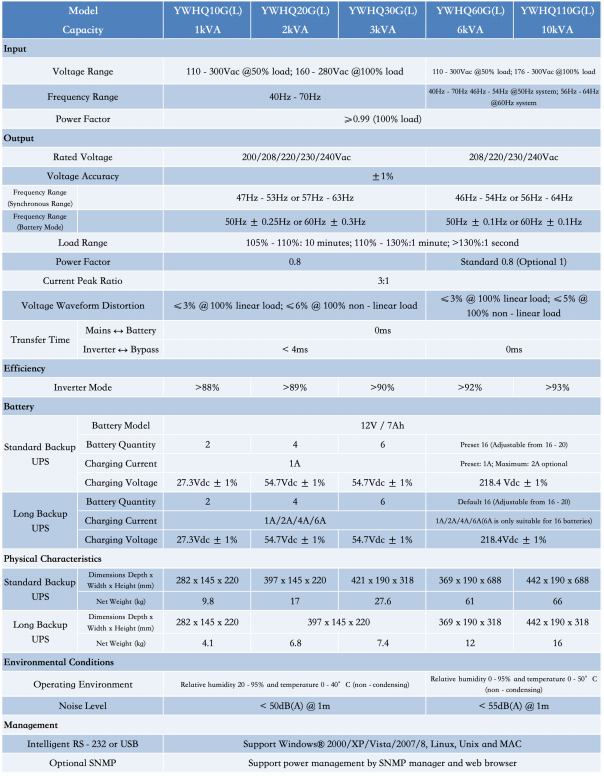

Performance Metrics

*When in the freguency conversion mode, the output power isderated to 80%; when the output voltage is set to 200Vac or208Vac, the output power will be derated to 80%.*The actual product shall prevail. Specifications are subjectto change without prior notice
