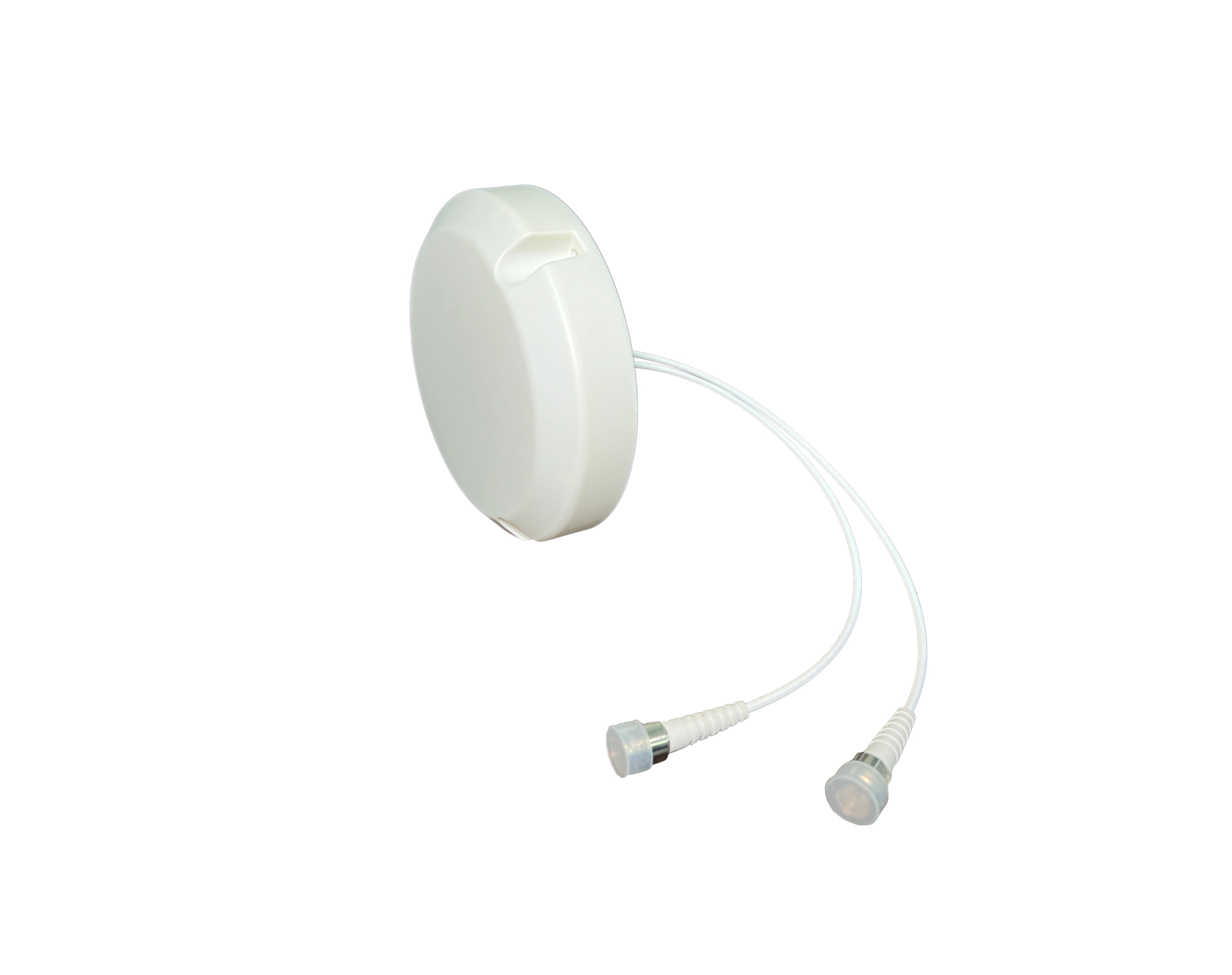

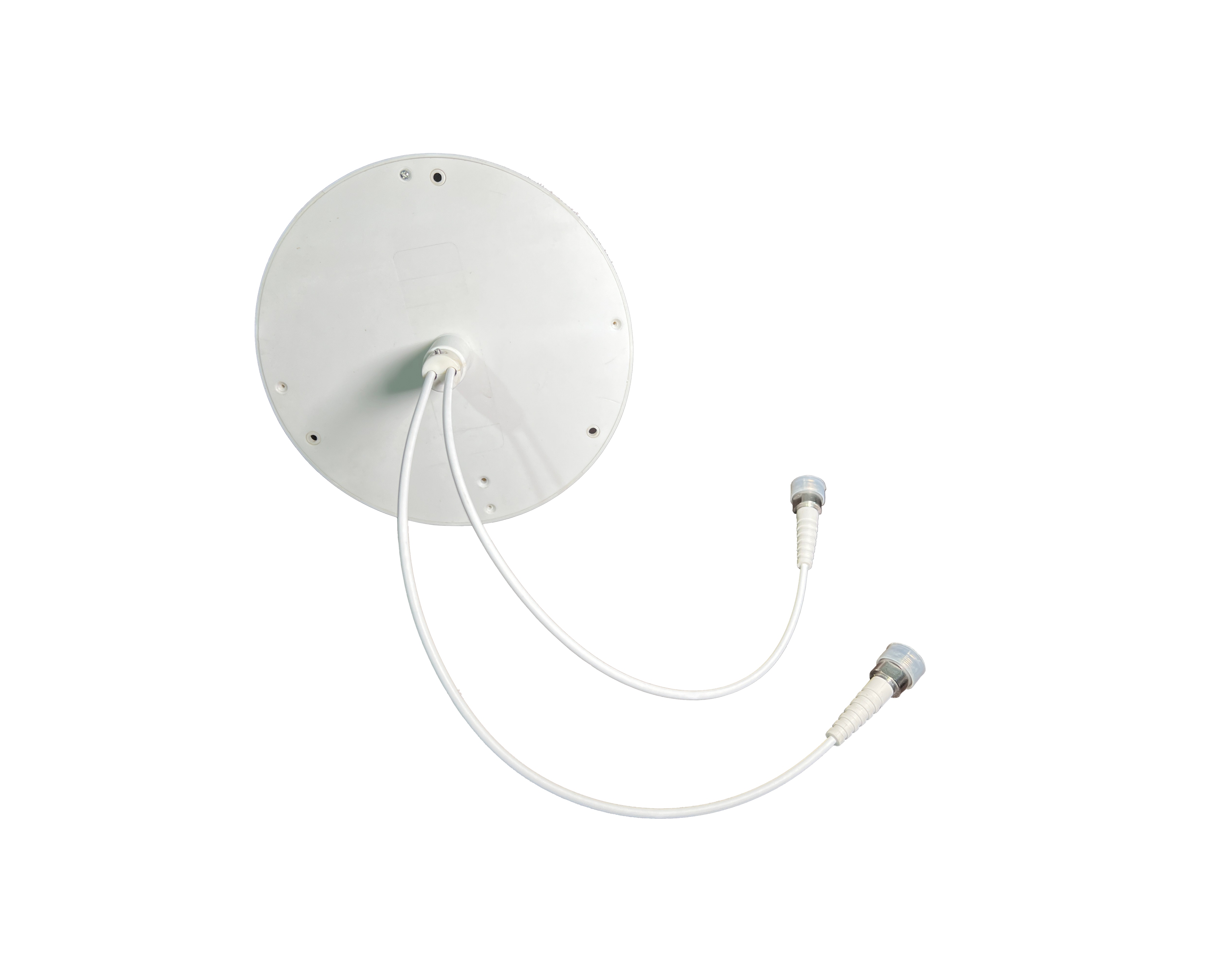

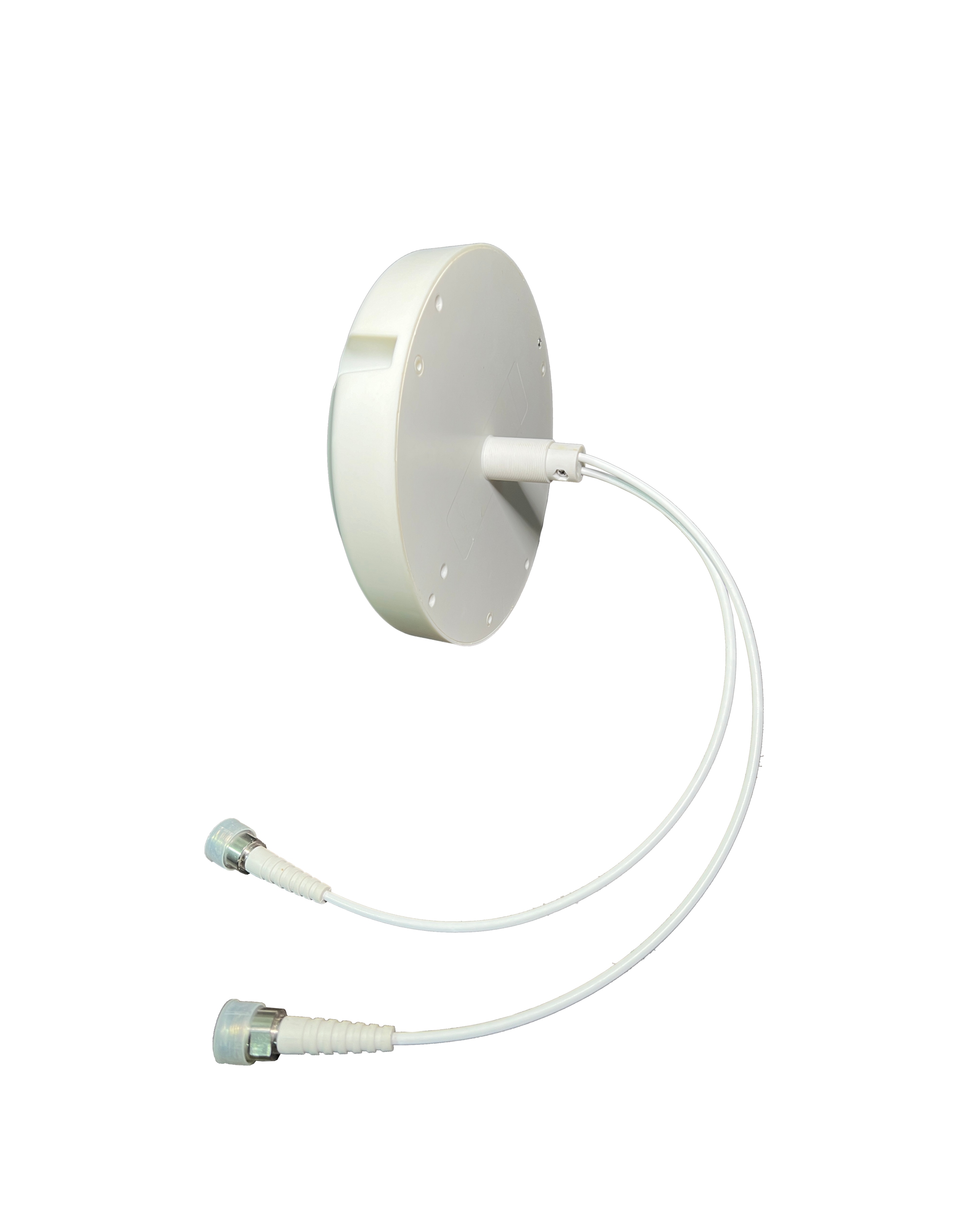

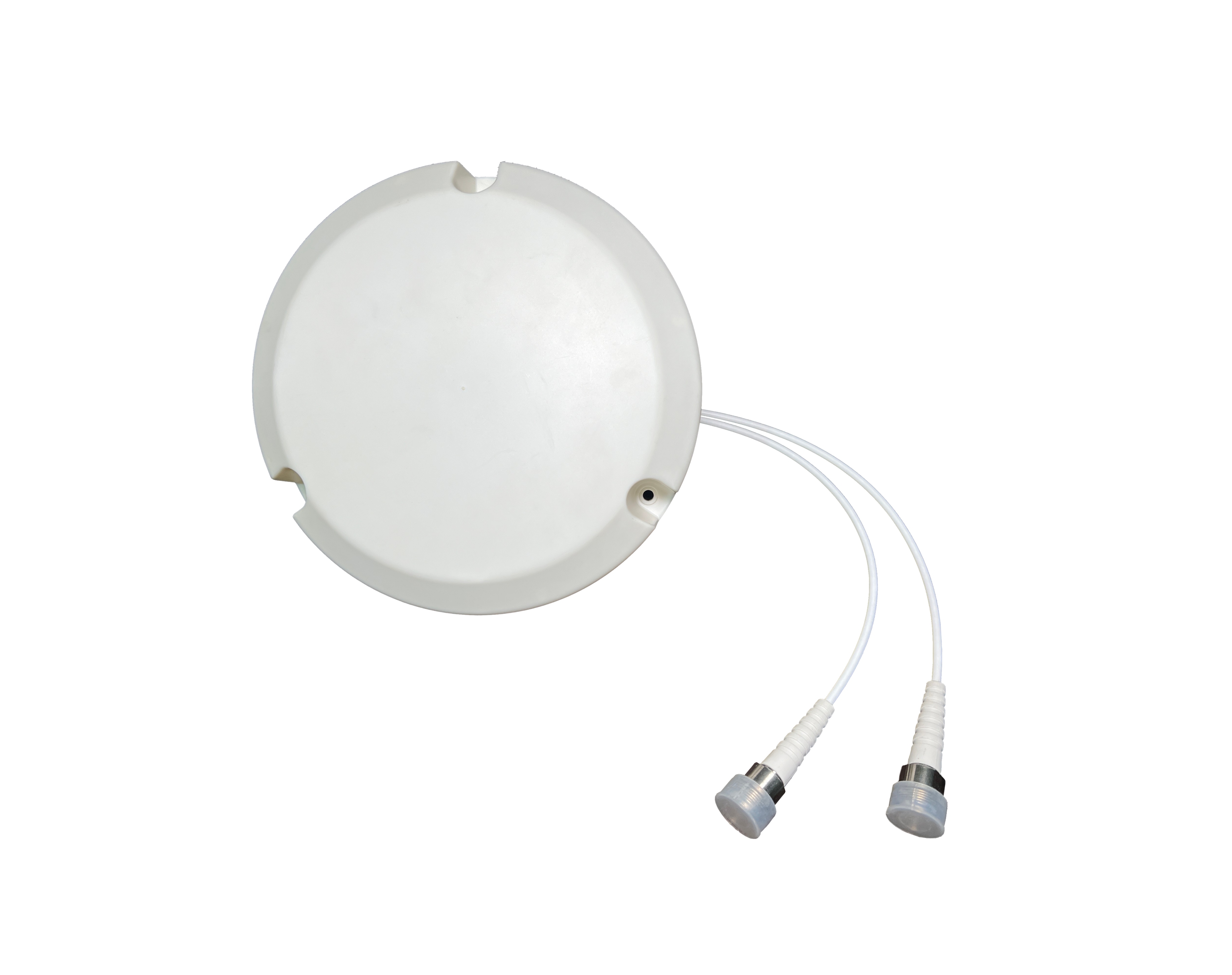

Omnidirectional two-port ceiling antenna
Unit:SET
Size:DSPXD698-3800VH-4i-360-4310-1
Price:Market Price
Price Clause:FOB
Indoor Wide band Omni Antenna , coverage 698 - 3800MHz，MIMO
| Model | DSPXD698-3800VH-4i-360-4310-1 | ||
| Electrical specifications | |||
| Frequency range (MHz) | 698-960 | 1710-2700 | 3300-3800 |
| Polarization | Linear x 2 | ||
| Gain(dBi) | 2.5±1 | 4±1 | 4±1 |
| Horizontal half-power beam width (°) | 360 | ||
| Vertical half-power beam width(°) | 75~110 | 30~65 | 20~60 |
| Isolation ：intra-system(dB) | ≥17 | ≥20 | ≥20 |
| VSWR | ≤1.8 | ||
| PIM, 3rd Order (dBc) | ≤-150 (2 × 43 dBm carrier) | ||
| Impedance(Ω) | 50 | ||
| Maximum input power(W) | 50 | ||
| Lightning protection | DC ground | ||
| Mechanical specifications | |||
| Connector | 2 × 4.3-10 Female | ||
| Dimensions (mm) | φ208 × 55 | ||
| Net weight (with installation kit) (kg) | 0.7 | ||
| Application scen | Indoor | ||
| Radiation material | aluminum | ||
| Radome materia | HIPS | ||
| Operating temperature (℃) | -40 to +55 | ||
| Mounting Kit | Ceiling, via hole | ||
| *This product is not suitable for installation on metal ceiling | |||
