Power range

Three-input three-output 10kVA-30kVA

Application field

Postal communication, finance and securities, government agencies, energy and chemical industry, transportation,industry and commerce tax, medical and health, national defense forces and other fields.

Performance characteristics

Green power energy-saving design

Using the latest IGBT rectifier technology to achieve ultra-low input current harmonics, eliminating pollution to the power grid, while reducing the cost of power factor compensation and harmonic governance, and lowering system losses.

Upgraded energy efficiency indicators

The overall efficiency of the unit is as high as 95%, greatly saving energy consumption and reducing operating costs.

When the mains power quality is high, the ECO economic mode can be used to supply power to the load, and the overall efficiency of the unit can reach 99%, with remarkable energy-saving effects.

Intelligent digital control system

The inverter and PFC of the UPS adopt an advanced 32-bithigh-speed digital signal processor (DSP) chip as the core control system, enabling faster data processing and signal control, which greatly improves the overall performance indicators and reliability of the unit.

Super-strong adaptability to the power grid

With an ultra-wide mains input range, it can adapt to complex power grid environments.

Avoiding frequent switching between mains power and battery power, thus extending the service life of the storage battery.

It can be well-matched with generators, reducing the ratio of generators and lowering investment costs.

Friendly human-machine interface

Adopting a large touch-screen design and rack-mounted installation, the operating status, load status, mains status,battery power supply status, etc. of the UPS are clearly displayed on the panel, allowing users to keep track of the UPS power information and changes in the application environment at any time.

Optional output isolation transformer

Suitable for various working conditions and scenarios to ensure stable power output and eliminate various noises.

Flexible networking and rich communication

Intelligent monitoring between the computer and the uninterruptible power supply can be achieved through dry contact communication, and online monitoring can be realized via SNMP, enabling users to have a clear understanding of the equipment's operating status from a distance.

Powerful battery adjustment capability

he number of batteries can be adjusted from 30 to 44,avoiding system operation being affected by battery failures.

Faulty batteries can be guickly removed, reducing maintenance time.For renovation projects, the battery configuration is more flexible, optimizing the investment cost.

Panel standard EPO and cold start

In case of an emergency, the UPS can be quickly shut down.when the mains power is abnormal, the UPS can be started directly with the battery to meet emergency needs.When there is no battery, the UPS can be started directly with the mains power and can be used as a high-precision regulated power supply.

Safer intelligent battery management

A three-stage intelligent charging mode highly matched with battery performance keeps the battery pack in healthy operation.

The battery secondary protection function effectively protects the battery, preventing the battery from being damaged by deep daischarge with a small current after overvoltage protection.

N+X parallel redundancy function

Supports multi-unit parallel networking and N+X hot-swapping mode, improving power supply reliability.

No additional parallel cards are required for parallelconnection; direct parallel connection can be achievedthrough parallel data cables.

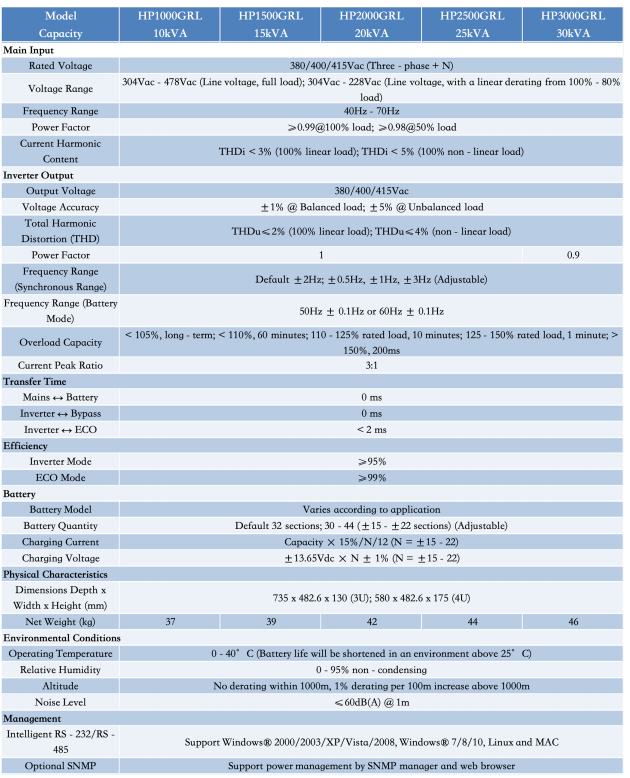

Performance Metrics

*When in the freguency conversion mode, the output power isderated to 80%; when the output voltage is set to 200Vac or208Vac, the output power will be derated to 80%.*The actual product shall prevail.Specifications are subjectto change without prior notice
