Power Range

Three-input single-output 10kVA-20kVA

Application field

Enterprise local area networks, data center computer rooms high -end commercial servers, electronic medical equipment government,communication, agents, distributors, channel retail and other fields.

Performance characteristics

Super-strong adaptability to the power grid environment

with an ultra-wide input voltage range, it can supply power normally even in remote areas with extremely harsh power environments,reducing the number of battery discharges and extending the battery life.

Friendly human-machine interface

The LCD display panel clearly shows the operating status, load status,battery status, etc. of the UPS, enabling users to keep track of the Ups operating status and changes in the application environment at any time.

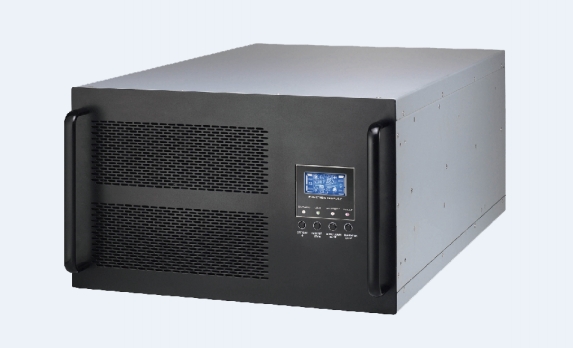

Standard 19 inches,，backup batteries compatible with lithium iron batteries

With a standard 19-inch rack-mounted assembly structure, itcan be installed in standard cabinets, saving floor space andmaking the space convenient for installation, use andmaintenance; it is compatible with lithium iron battery devices.

Adopting the latest DSP control technology

Using advanced DSP digital control technology, it effectively improves product performance and system reliability, and achieves higher power density integration and miniaturization.

Automatic input power factor correction function

Using digitally controlled active power factor correction technology, the input power factor can reach over 0.99, to cope with the pollution of the power grid environment, reduce the front-end configuration cost of the UPS, and lower the customer sinve stment cost.

50/60Hz frequency self-adaptive function

The frequency automatically tracks to adapt to 50Hz/60Hz power systems, meeting the requirements of global power systems.

Compatible with generator input

With a wide input voltage and frequency range, it better solves the generator configuration problem and provides clean, safe and stable power for the load.

Eco economic operation mode

With an ECO operation mode, it is highly efficient and energy-saving, reducing users usage costs.

Flexible input wiring methods

Two input wiring methods (380Vac/420Vac optional) can be set on-sitemaking the installation more flexible.

N+X parallel redundancy function

It has the N+X parallel redundancy function.

Cold start and mains self-start functions

When the mains power is abnormal, the UPS can be started directly with the battery to meet emergency needs.

When there is no battery, the UPS can be started directly with the mains power and can be used as a high-precision regulated power supply.

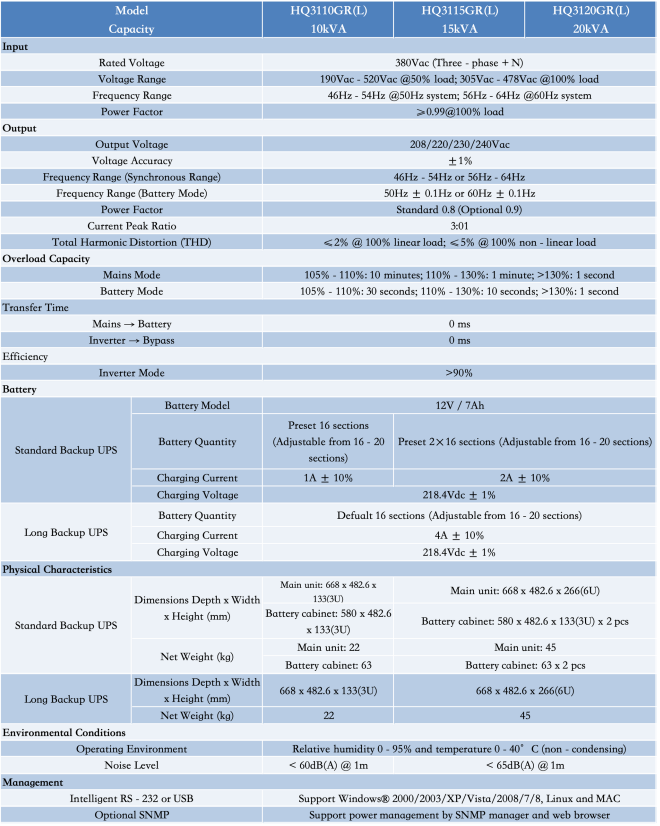

Performance Metrics

*When in the frequency conversion mode, the output power is derated to 80%; when the output voltage is set to 200Vac or 208Vac, the output power will be derated to 80%.*The actual product shall prevail, Specifications are subject to change without prior notice
